user manual of vehicle mount mDVR BMD9740 BMD9540

Publish Time: 2025-07-26 20:42:07

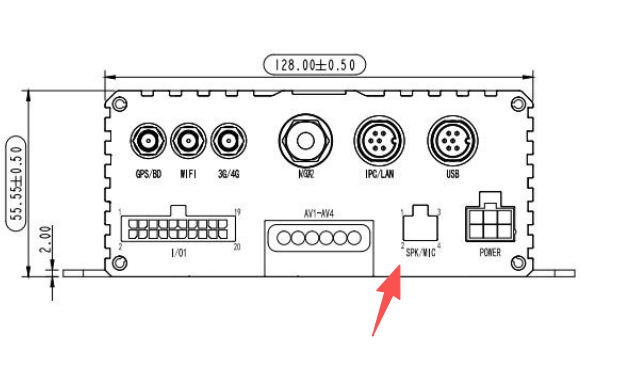

Hardware interfaces

pls note, WiFi, IPCam support are not default, they are optional, there is extra charge on them.

video demo, vehicle mount mDVR full connection and basic settings, https://vt.tiktok.com/ZSSSPeRCV/

basic settings by VGA/AV display+USB mouse

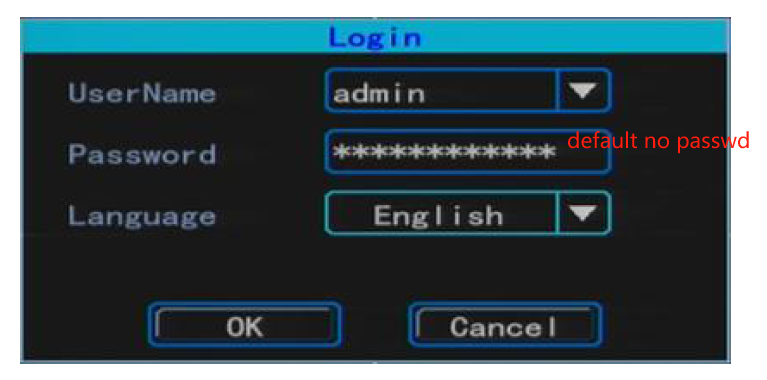

After the equipment is powered on, please connect the CVBS or VGA monitor, insert the mouse into the front panel of the device, click right to display the user login interface, user: admin, no passwd by default, click OK to log in. After logging in, right-click on the mouse to enter the main menu. there is wizzard for new users, but wizzard is not necessary.

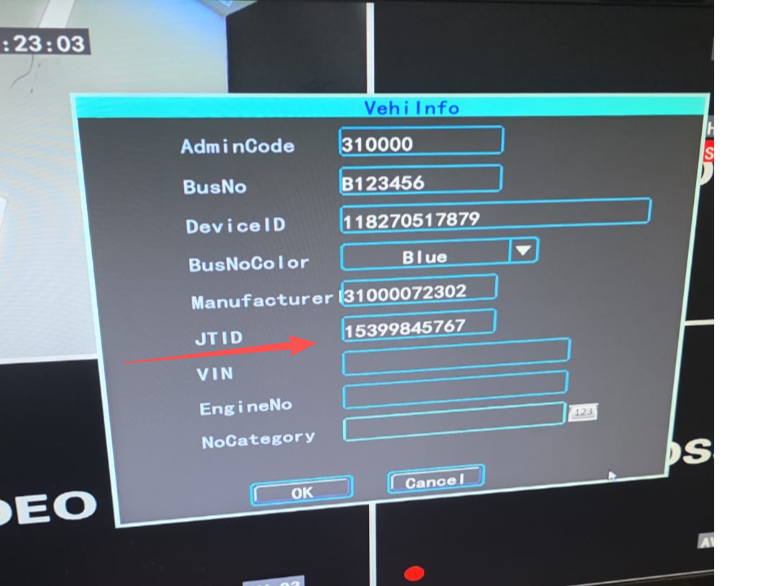

set device info, phone number and car plate etc.

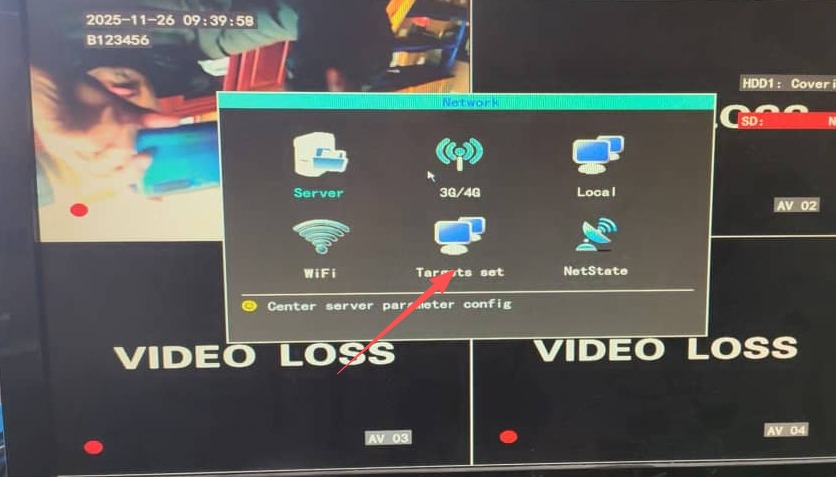

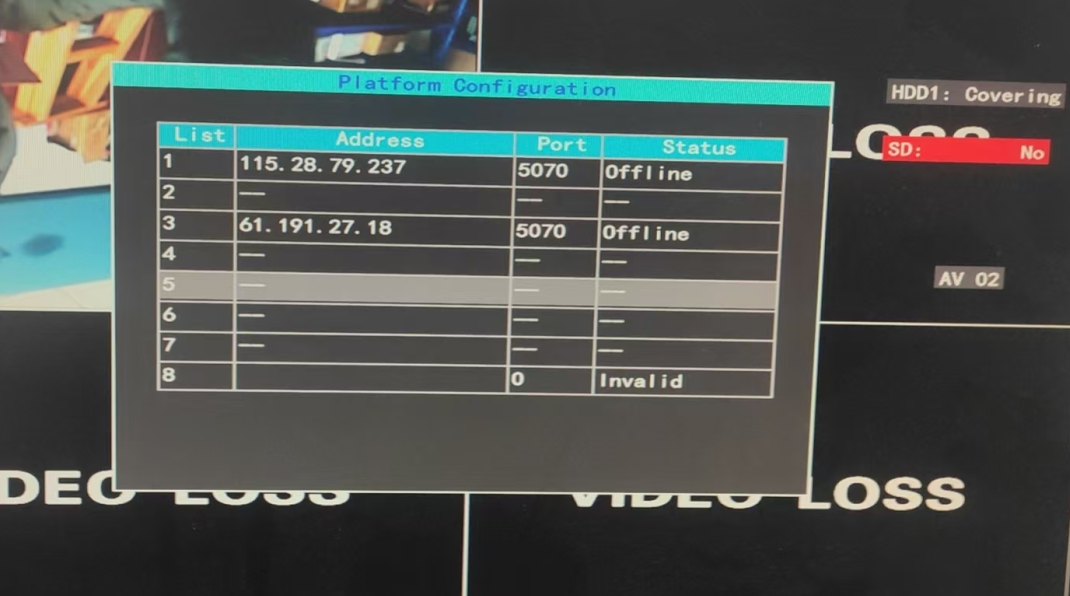

setup smarteye server IP&port

setup APN for local SIM card

connect a IPCamera(ONVIF) in

connect an ONVIF-standard IPCamera to the ethernet port RJ45, make sure it's ONVIF-complied, user/passwd confirmed, and H.264, pls note, do not use H.265, it's not supported by the mDVR. make sure the mDVR LAN IP and the IPCam's IP in same IP segment, e.g. 192.168.88.xxx.

Usually, set IPCam to DHCP mode, the mDVR provides DHCP server on its WAN, so set an IP to mDVR's WAN, so it may assign IP to IPCam by DHCP, thus mDVR can discover this IPCam.

the mDVR takes the sub-stream from the IPCamera by default.

if failure persists here, pls create a user account in your IPCam WEB settings other than admin.

in smarteye WEB

pls note,

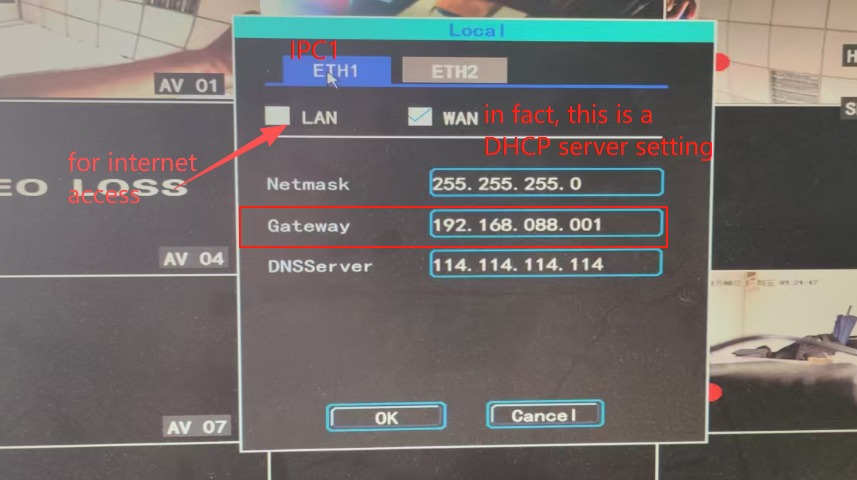

ethernet port RJ45 can be used to access internet to VMS/smarteye, set IP/gateway for LAN, while WAN is in DHCP server for IPCamera.

5070~5075/TCP ports should be enabled on server side, server authID to enable JT/T1078 and set public IP in management center,

SD/HDD format to use

SD card has to be locked well before use.

recording&playback

auto-recording on all channels by default, can be played back on VGA monitor.

2way audio talk

by handset connected to SPEAKER cable, PTT button pressed to speak.

recording clip files copy out/backup&playback

HDD mDVR howto, https://www.besovideo.com/en/detail?t=1&i=485

4ch IPCamera mobile NVR user manual, https://www.besovideo.com/en/detail?t=1&i=488
