user manual of WiFi glass camera BX102
the glass camera BX102 connects to WiFi AP/hotspot, can output GB28181 and RTSP simultaneously.
hardware
32GB TF card built-in by default, user access not allowed unless disassemble the glasscam.
buttons
1) Fn1 press to start/stop pushing stream to VMS/smarteye over GB28181, 480P by default
2) Fn2 press to start/stop recording, 1080P by default, this also works as switch for RTSP streaming
3) PWR, audio prompt "device power ON/OFF", "start network connection", "network connection successful/failure"
there is audio prompt for each button operation. there is LED light when power up.

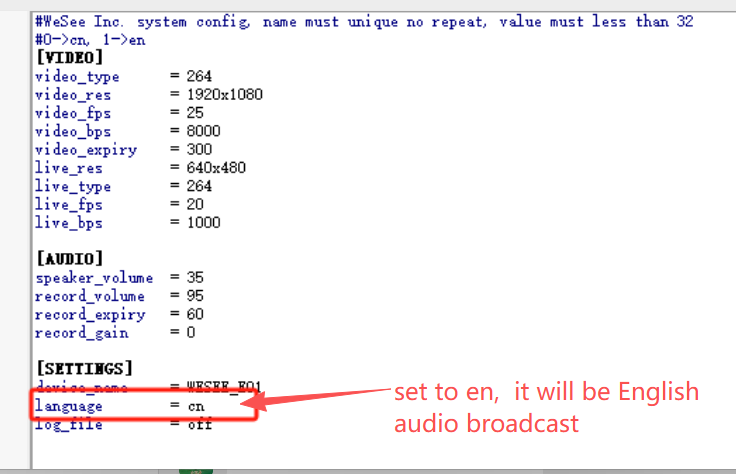

configuration by modifying config files
setup WiFi
connect the glasscam to WINDOWS PC, the glasscam will turn to U-disk, find IConfig/wpa_supplicant.conf file, and edit it, e.g., SSID=TP-LINK-D526, passwd=Beso_6688, save and reboot glasscam, it will work,
ctrl interface=/var/run/wpa supplicant
ap_scan=1
update_config=1
network={
ssid="TP-LINK-D526"
psk="Beso_6688"
key_mgmt=WPA-PSK
}
setup GB28181
connect the glasscam to WINDOWS PC, the glasscam will turn to U-disk, find IConfig/GB28181.ini, edit it, enter SIP_ID, serverIP, port etc, save and reboot glasscam, press Fn1 button to start/stop getting online to smarteye, audio prompt "enable monitoring".
[UA]
server_id=34020000002000000001
server_ip=81.97.116.211
server_port=15060
user_id=34020000001320000719
passwd=123456
user_port=5060
expiry=3600
heartbeat=30
transport= UDP
MCP as mobile client
find recording files
connect the glasscam to WINDOWS PC, the glasscam will turn to U-disk, find IGlass/Videos for clips files, IGlass/Pictures for snapshot files.
RTSP output
press the middle button Fn2 to start/stop RTSP streaming.
e.g. the IP of the glass camera is 192.168.3.43, so the access URL is rtsp://192.168.3.43:8554/live , may test it by VLC,
APP operation on phone over bluetooth (not necessary)
install assistant APP(SeeuNewAssistant.apk), make sure the glass cam and this android phone under same WiFi AP/router.
select "connect--bluetooth", match device (X1_xxxx), enter AP passwd, sysn network, connection will be ready.
this is not necessary, in fact, this APP can only do local P2P live streaming.
this APP can do snapshot, live view, can set video encoder resolution etc. sorry for no English version.
rtsp://192.168.3.43:8554/live
try RTSP by VLC,
firmware upgrading
OTA upgrading by adb command,
power up the glasscam, connect to WINDOWS PC via USB cable,
run cmd to exec adb command, copy the firmware(UPDATE.zip) to adbtoos/ path,
1) PUSH the new firmware to TF card,
adb push UPDATE.zip /tmp/mnt/sdcard
2) upgrading, the blue LED will fast-blink and will auto-reboot when done, pls do not power off or pull off the USB cable during this time.
pls watch the fast-blinking-blue-LED untill it slows down with audio prompt for rebooting, this will take about 20seconds, that means all settled.
adb shell recovery
using Clone(32M) tool to upgrade
if adb upgrading fails, then try this clone software on WINDOWS PC.
it's cloner-zeratul_32M , different BF101 (16M) , connect the glass camera to WINDOWS PC via USB cable, run cloner.exe, all in default, it's all in Chinese,
select firmware.bin file,
long press "PWR+Fn2" buttons simultaneously, it will start to FLASH, there will be progress bar, when 100% finished, it's done.
NOTE:
if there is driver alert, pls install/update the USB driver for this glasscam by "cloner-win32-driver" ,
this 100% indicates all done, disconnect USB , new firmware will work.
