user manual of AI box
setup via ethernet cable, factory default LAN IP(eth1) is 192.168.150.1, WEB visit http://192.168.150.1 , user/passwd: admin/admin .
Warning!
the IP of this AI box MUST be written down to remember if you change it, or else can no longer access it if this IP forgot.
1. setup network for AI box
LAN IP eth1 default IP, 192.168.150.1, internet access if not necessary if no need to cooperate with smarteye server.
internet access is needed if cooperation with smarteye.

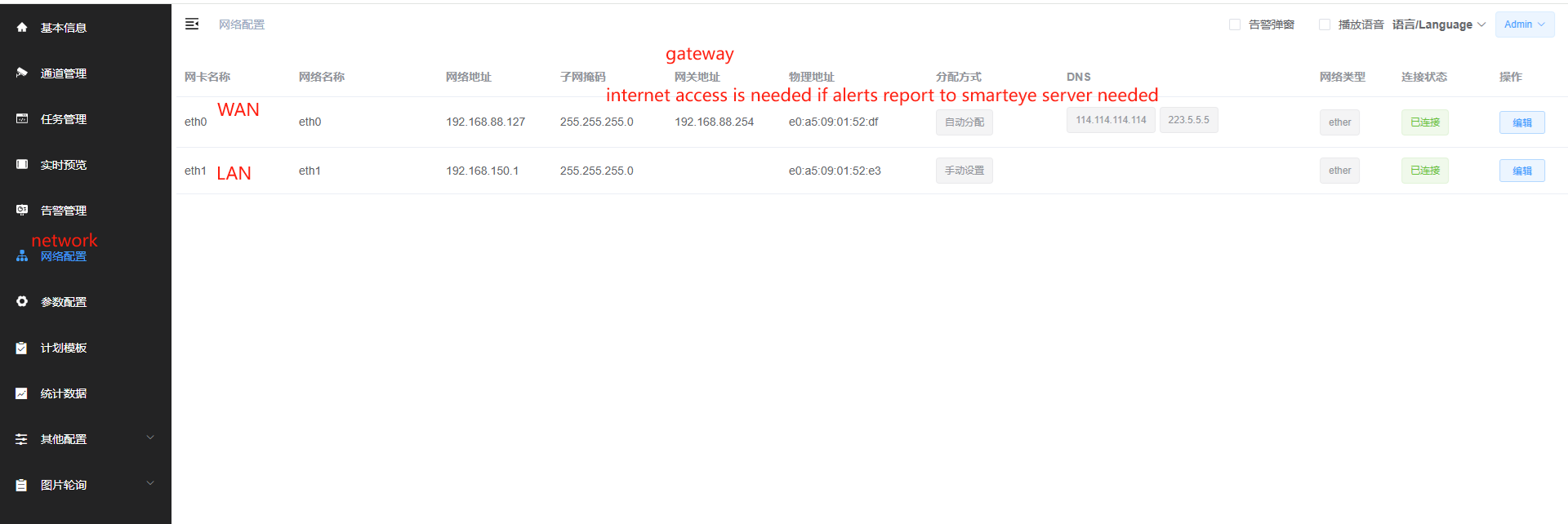

2way to setup internet access, can set on either eth0 or eth1, my suggestion, better use eth0/WAN port if you have 2 ethernet cables at hand, as shown below.
but can set to LAN/eth1 port if only one ethernet cable now, usually you will have to modify the eth1 IP to fit for your local network to work with your local ROUTER, but PLEASE write down&remember the modified IP of eth1, if you forget it, you will lose access to this AI box for ever!!!
2. add video channel from RTSP stream

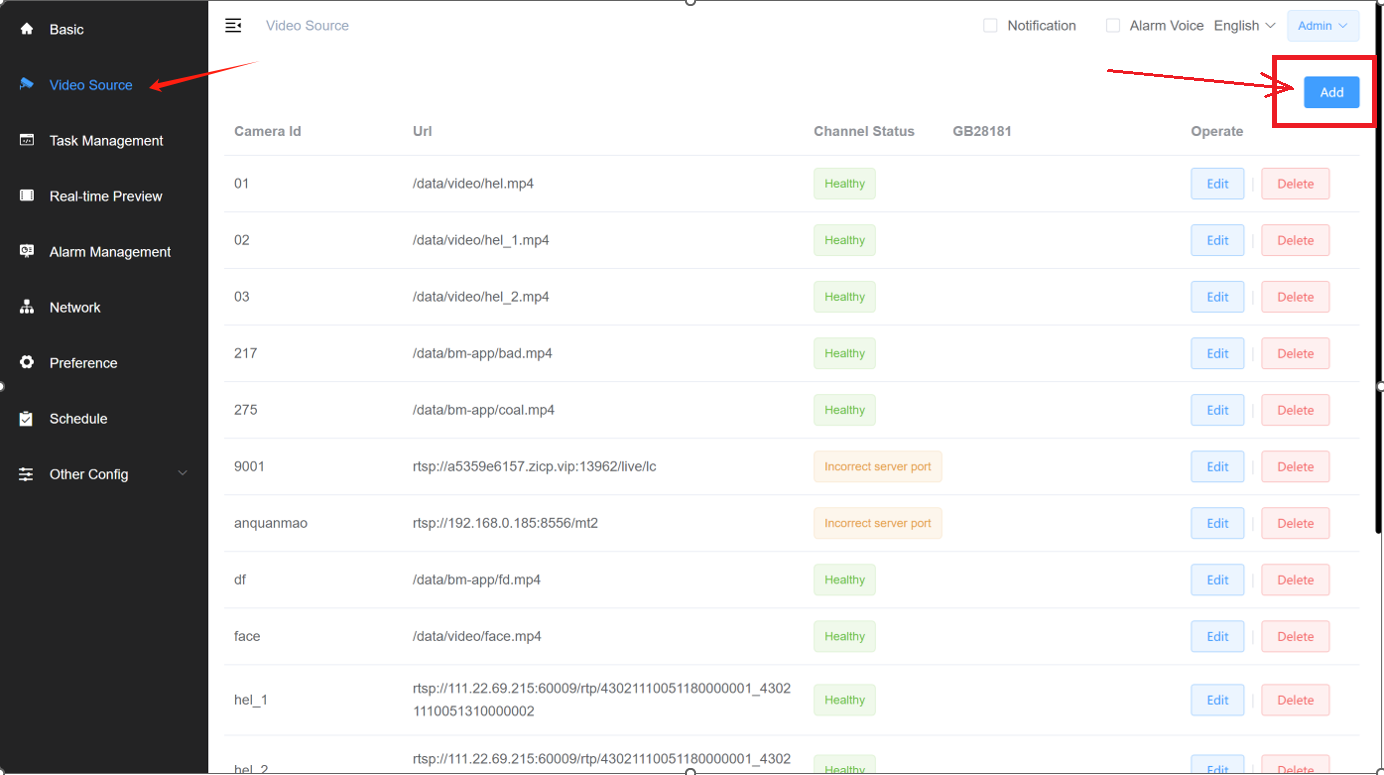

in WEB settings----> video source , add new source/channel.
this RTSP stream can be from a cabled IPcamera or from smarteye server for 4G/5G cameras, as shown below,

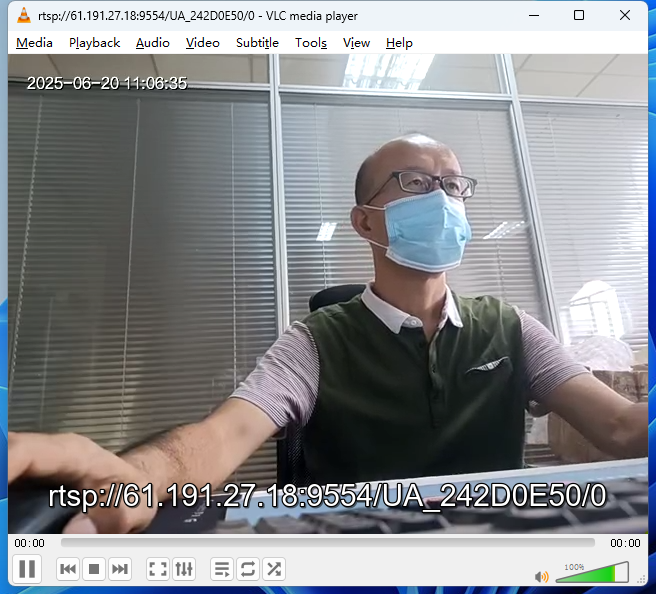

may double check RTSP stream by VLC to confirm.
3. setup task to select which channel with what AI algorithm.
WEB UI ----> task management

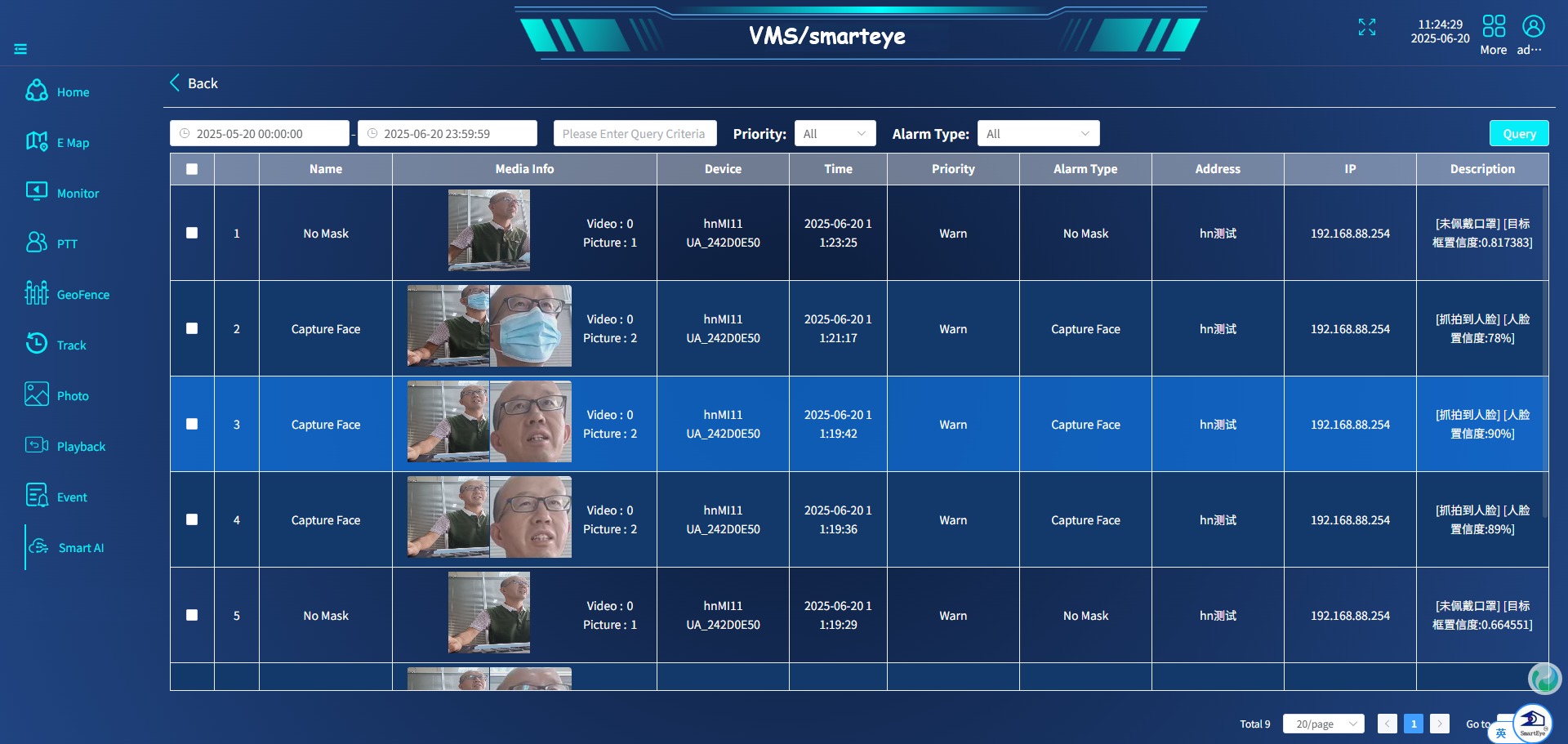

alerts report to smarteye server by setting, then all info will be displayed in smarteye AI part,
https://84.22.96.184:9781/bvalg/v2/ai/message/rj

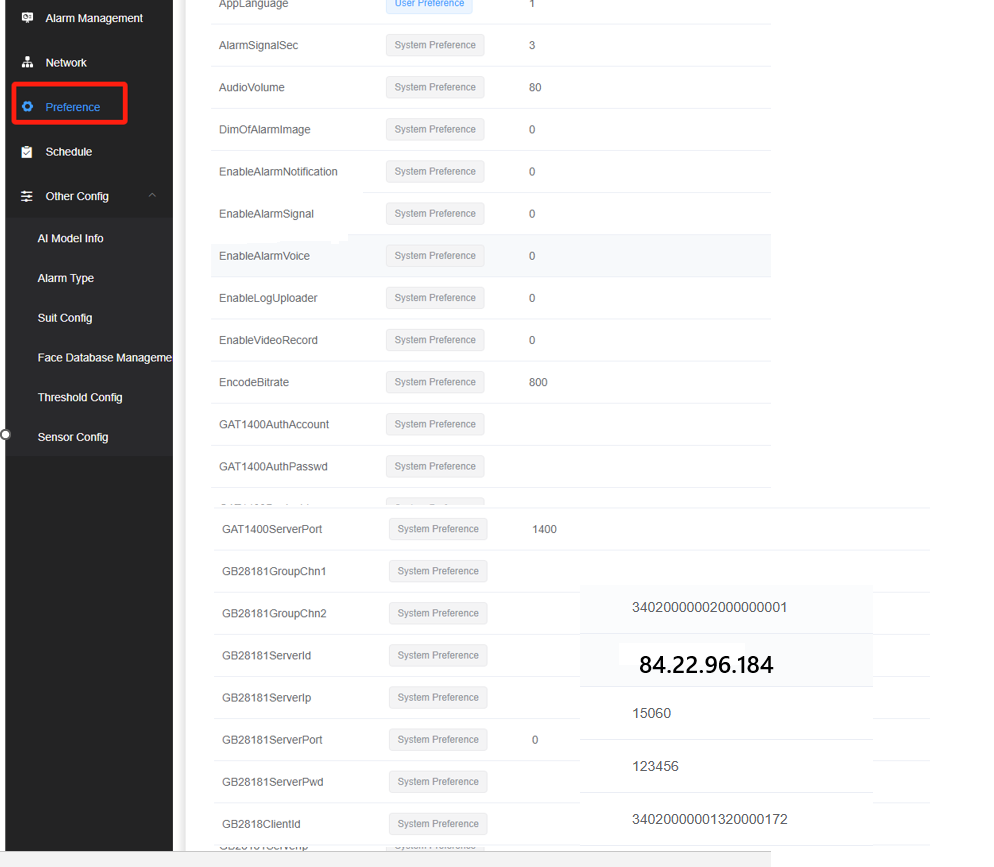

transcode GB28181 stream out
