smallest mini 4G body camera N9

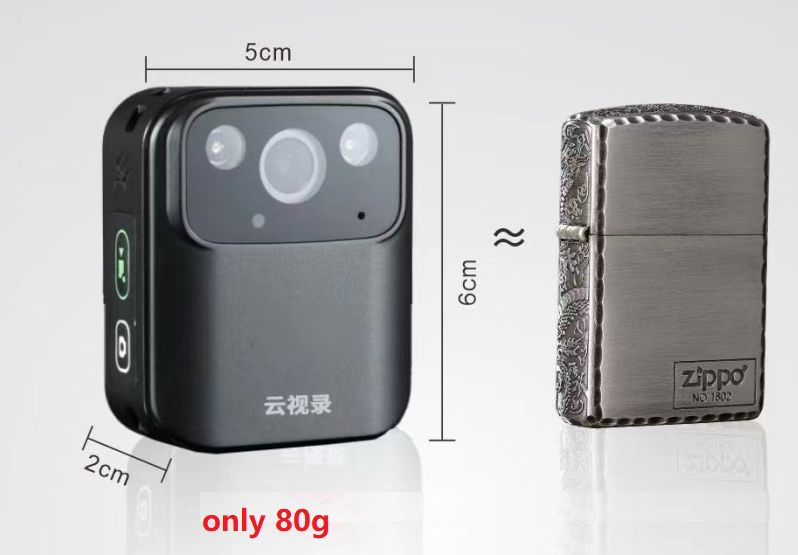

Size & Weight

Size

Phone size：58.2mm*48.5mm*23.6mm

Magnetic clip size：58.2mm(62.7mm,  included lanyard hole)*48.5mm*8.0mm

Weight

Handset:84g

Magnetic weight:20g

Hardware

Platform

CPU:SL8541E,quad-core A53,1.4GHz
GPU:Mali 820 MP1 @ 680MH

Frequency band

GSM：B3/B8
WCDMA：B1/B8
LTE_FDD：B1/B3/B8
LTE-TDD：B38/39/40/41

RAM+ROM

533 MHz LPDDR3 eMCP：4+64GB(Optional 4+128GB)

Display

High resolution MIPI, rounded screen 1.72"356*400 (Not support SPI)

Touch panel

1.72"INCELL

Camera

200W Industrial grade chip and lens,Support Filter IR_CUT switch,1080P,30 fps
GC2053:1/2.9" chip,FF

Positioning

Single Beidou(ATGM336H-6N mould)
Support BeiDou II / BeiDou III, support B1I / B1C frequency point

Bluetooth

BT 4.2

WIFI

Support,IEEE802.11 a/b/g/n,2.4G

LED indicator

1pc RBG tri-color light
Green light on--Standby status
Red blinking---Recording status
Yellow blinking--Recording status
Red light up--Photo
Blue light on --Charging full light off
Light off-- Fully charged

Infrared light

Support,2 pcs (night vision)

OTA

Support

Speacker

Rated power 0.5W, Max 0.8W,Support intelligent amplifier(0815 wire bonding)

Mic

0415 wire bonding

Motor(Vibro)

1027 wire bonding

Battery

1700mAh

Camera

Camera

GC2053:1/2.9"chip

Video angles

horizontal angle:102°,TV distortion at 12%,TTL:14.7

lens aperture

camera shot 4G,F/N0=2.5

FHD（1080P）:1920X1080(30fps)

HD（720P）:1280X720(30fps)

VGA（480P）: 640X480(30fps)

D1：720 x480（30fps）

Video enc

H.264，compatible H.263

Connector

SIM card

Single Nano-Sim,Push-to-take card

USB

TYPE-C Charging&USB Cable,USB2.0,5V0.3A

TF card

No

Keypad

on/off switch

Long press to turn on/off, short press to standby/wake up

vREC

Short press to start recording, short press again to end recording, long press to manually switch IR-CUT (night vision mode)

snapshot

Short press the button to take a picture

rec

Short press to start recording, short press again to end recording, long press to return

Certification

China

Qualified 3C, network presence, type approval,
does not meet the Ministry of Public Security GA / T 947.2-2015 standard

Over sea

Qualified CE,FCC,ROSH reports and certifications

Safety regulations

operating temperature

-10℃~+55℃

Storage temperature

-20℃~+70℃

ESD

Touch±4KV,Air±6KV

Protection

IP65

Working time

Charging

Less than 3.5 hours

Recording

1080P continuous recording time 6 hours

Image transmission time

4G(LTE) network,1080P continuous image transmission 4 hours

Packaging and accessories

In the box

Gift box

Adaptor

USB cabel

Magnetic clip

Warranty card

System

OS

Android 9.1, VMS/smarteye
