user manual of 4G torch camera BJ107
Hardware interface
2+32GB+TF card(max 256GB), android 10, 2.4' LCD, 7000mAh/14000mAh(optional) battery
|
model |
BJ107B |
|
|
system |
OS |
Android 10 |
|
CPU |
Quad Core@2.0GHz |
|
|
video |
encoder |
H.264 |
|
resolution |
1920×1080、1280×720 |
|
|
dual stream |
supported |
|
|
display |
LCD+TP |
2.4' |
|
camera |
FoV |
H 100 |
|
snapshot |
≥ 50MP |
|
|
light |
2 whte light, 1 torch light |
|
|
network |
4G/WiFi |
supported |
|
BT/NFC |
yes |
|
|
position |
GPS+ BD |
|
|
buttons |
PTT , PWR, REC, snapshot, flashlight, return, OK, up/down/left/right |
|
|
interfaces |
USB |
1×TYPE-C USB |
|
SIM |
1×SIM |
|
|
TF |
yes |
|
|
battery |
7000mAH, removable |
|
|

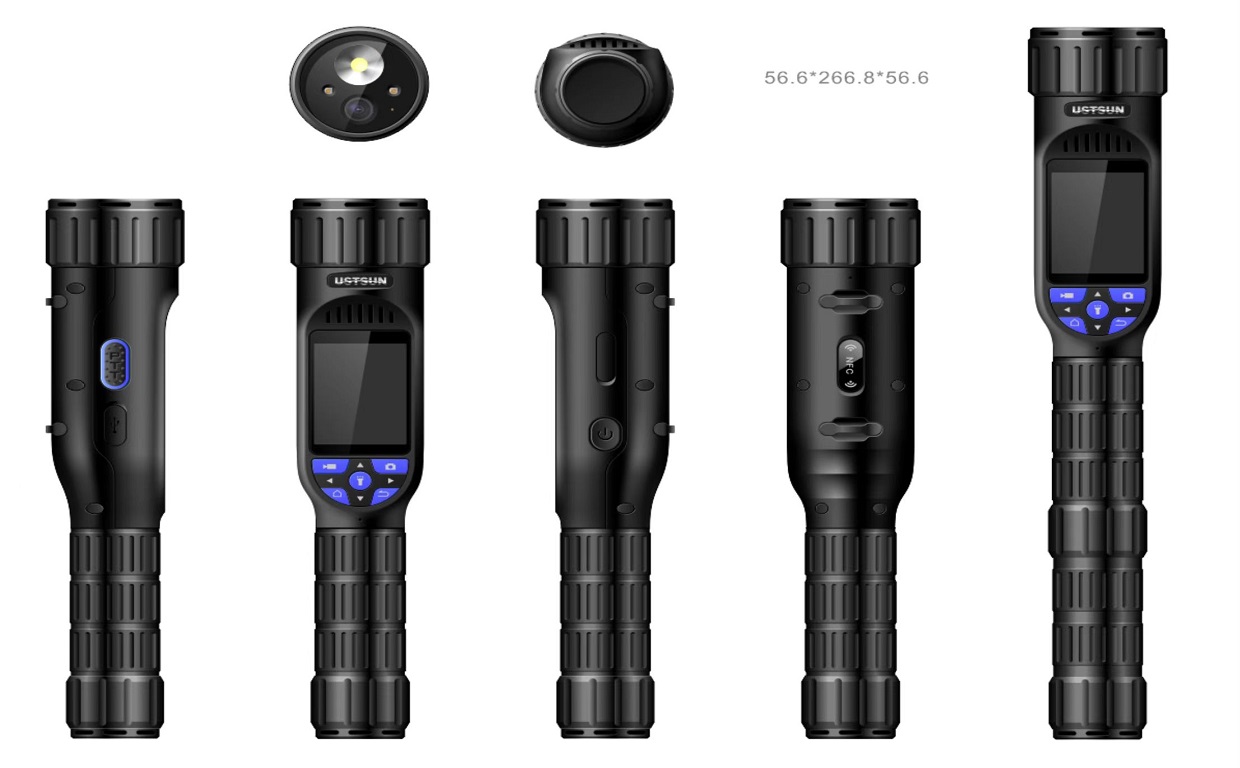

weight/dimension |
550g, 56.6*266.8*56.6mm |
|

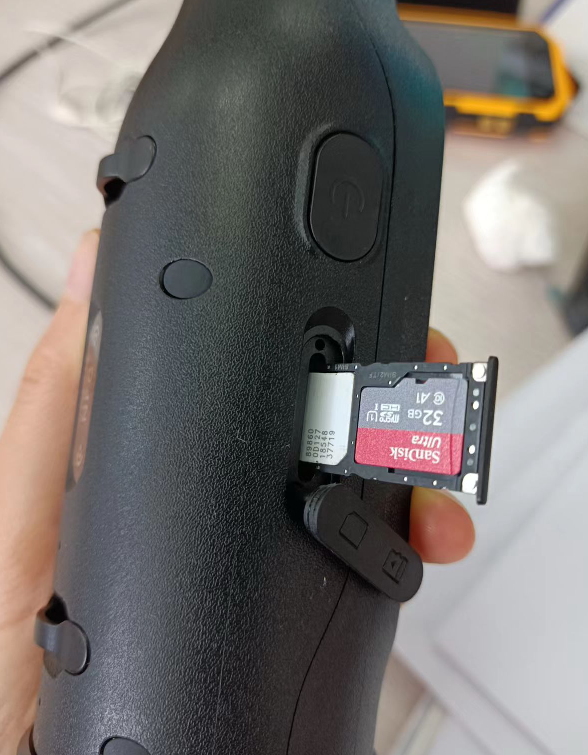

SIM card
employ projector software to access the internal Android system
totalControl is recommended, can download from https://www.sigma-rt.com/en/tcgames/, input mode2 or 4.
APP inside the camera
it's MPU inside, pls check details here. https://www.besovideo.com/en/detail?t=1&i=130
VMS/smarteye software
about smarteye C/S client monitor&manager, https://www.besovideo.com/en/detail?t=1&i=87
FAQ for server-E WEB software, https://www.besovideo.com/en/detail?t=1&i=166
access recording footage files in the camera
connect the camera to a WINDOWS PC via USB cable, run "BVUSBManager" tool software on this PC, "get DEVICE" enter passwd "888888",
then enable U-disk mode, the internal storage(TF card) can be accessed, read/write/delete enabled, the path is MPU/storage/video
